Ürün ayrıntıları

Ev Ürünler

Honeywell HG4930 6-DoF IMU with ±200°/s Gyro and ±30g Accelerometer

Honeywell HG4930 6-DoF IMU with ±200°/s Gyro and ±30g Accelerometer

Marka Adı:	FIREPOWER
Model Numarası:	HG4930C
Moq:	1
fiyat:	6500$
Ödeme Şartları:	L/C, D/P, T/T, Western Union
Tedarik Yeteneği:	Örnek için 1 hafta

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Gyro dinamik ölçüm aralığı:

± 200 °/s (özelleştirilebilir)

Sıfır önyargı stabilitesi (@ allan varyansı):

≤0.2 °/s

Sıfır önyargı stabilitesi (10s pürüzsüz):

≤0.5 °/s

Rastgele yürüyüş:

0,02°/√sa

Bant genişliği:

100hz

Acc Aralığı:

±30g

ACC Sıfır Önyargı İstikrarı (Allan Varyansı):

30g

Gerilim:

Titreşim:

10 ~ 2000Hz ， 6.06g

Ağırlık:

120g

Ambalaj bilgileri:

Sünger + karton

Yetenek temini:

Örnek için 1 hafta

Vurgulamak:

Honeywell HG4930 IMU sensor

6-DoF IMU with gyro

IMU accelerometer with warranty

Ürün Açıklaması

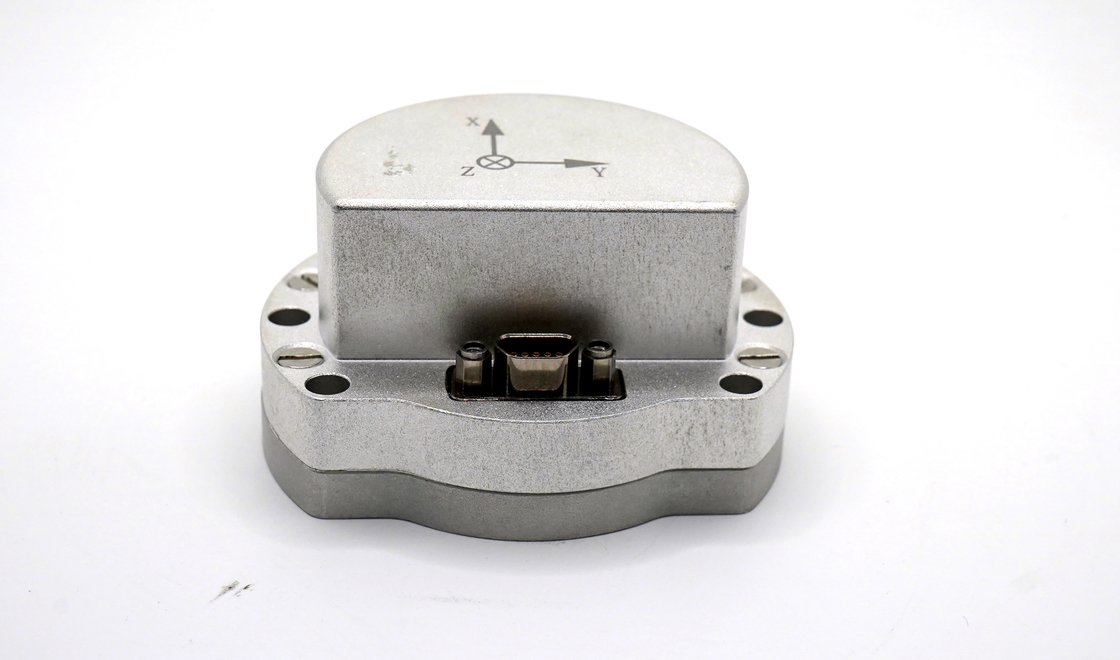

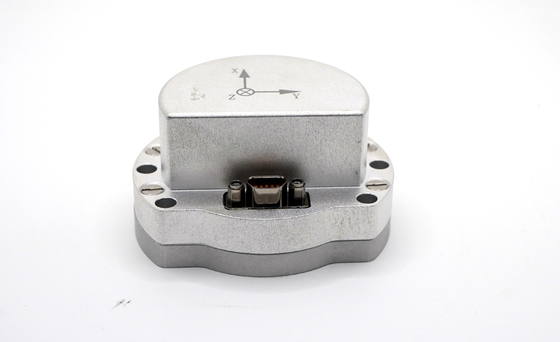

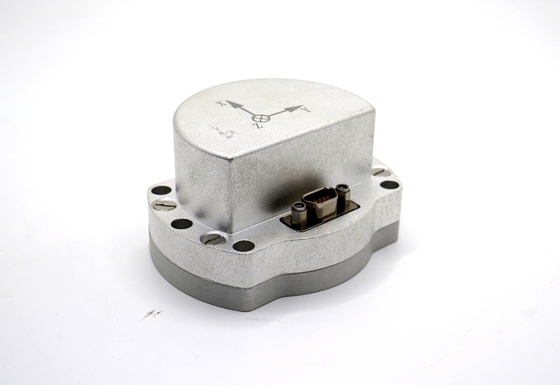

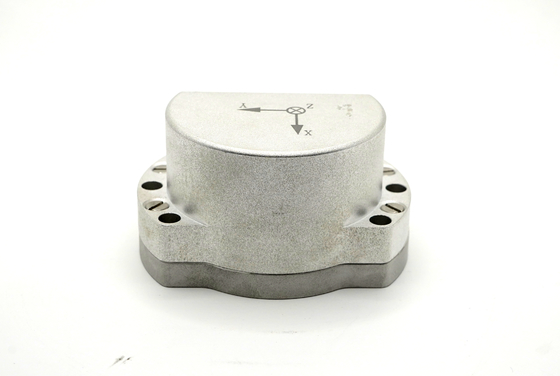

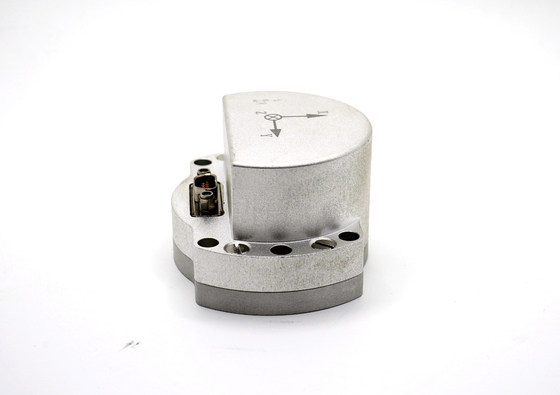

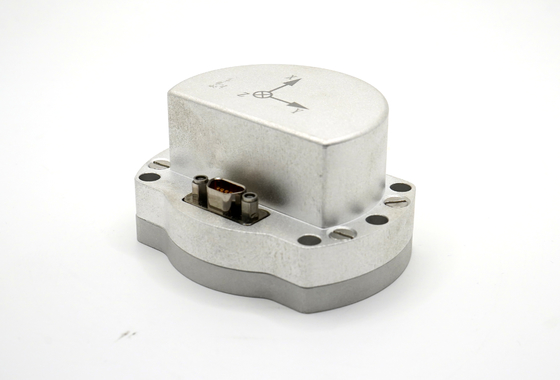

Honeywell HG4930 6-DoF Inertial Measurement Unit with Integrated Gyroscope and Accelerometer

The Honeywell HG4930 is a tactical grade MEMS Inertial Measurement Unit replacement designed for high-performance applications. This compact and rugged navigation sensor is engineered for demanding environments across aerospace, defense, UAVs, robotics, marine, and industrial automation sectors.

Key Features

Integrated three-axis gyroscope and three-axis accelerometer
Built-in temperature sensor for environmental compensation
Advanced signal processing board for real-time motion data
Durable mechanical structure for harsh environments
Precise measurement of angular rate, linear acceleration, and inclination angles
Temperature correction and installation misalignment compensation
Nonlinear behavior correction for stable, accurate information
Reliable performance under high dynamics and extreme conditions

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
