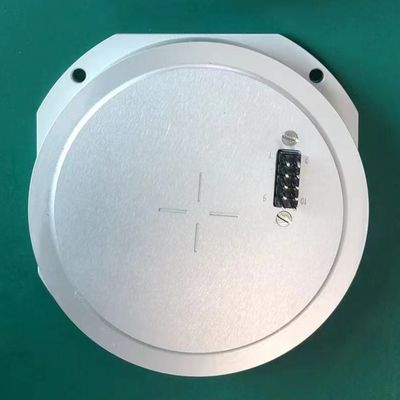

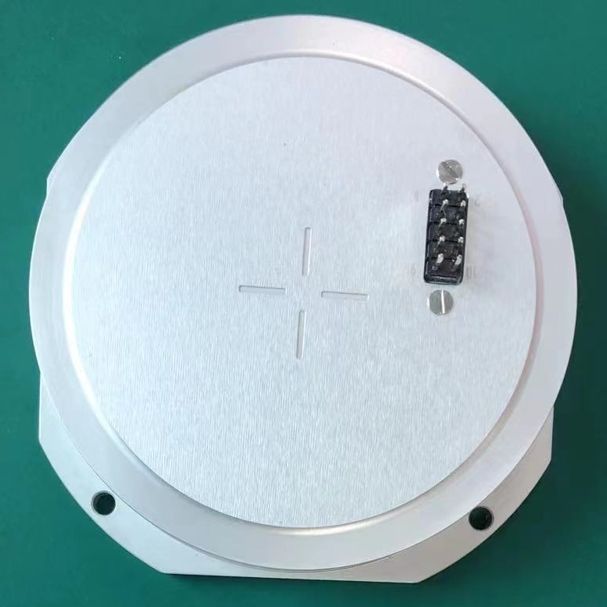

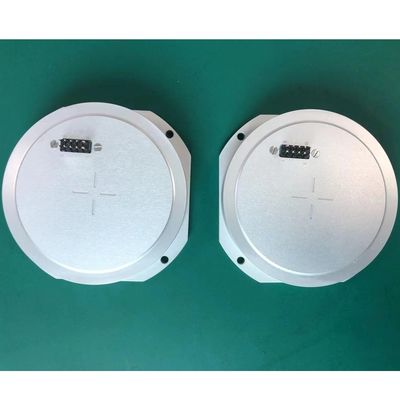

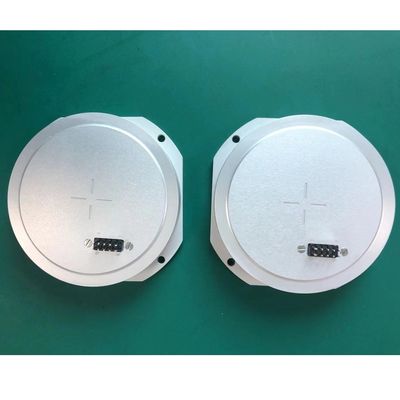

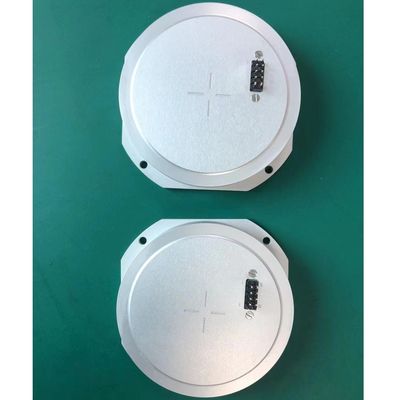

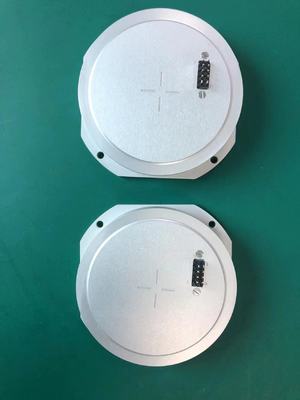

Fiber Optic Gyro Sensor 6.06g Vibration Resistance Low Drift

Fiber Optic Gyro Sensor 6.06g Vibration Resistance Low Drift

Marka Adı:	avic
Model Numarası:	Mfog103pt
Moq:	1
fiyat:	900 USD
Ödeme Şartları:	T/T
Tedarik Yeteneği:	1000/ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Çalışma sıcaklığı:

Geniş aralık

Gürültü seviyesi:

Düşük

Ağırlık:

Hafif

Güç tüketimi:

Düşük

Güvenilirlik:

Yüksek

rastgele titreşim:

6.06g,20~2000Hz

Maliyet:

Mantıklı

Çözünürlük:

Yüksek

Ambalaj bilgileri:

Karton

Yetenek temini:

1000/ay

Vurgulamak:

Fiber optic gyro sensor low drift

Fiber optic gyro vibration resistance

Fiber optic gyro sensor 6.06g

Ürün Açıklaması

Inertial Gyro Sensor Low Drift

Product Overview

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect and process phase differences between counter-propagating light beams.

Key Features

Product Name: Fiber Optic Gyro
Compact dimensions for space-constrained installations
Withstands random vibration: 6.06g, 20~2000Hz
High stability for precise measurements
Low power consumption for extended operation
Lightweight construction for easy integration

Applications

This single-axis gyro delivers fast response times in a compact, lightweight package, making it particularly suitable for:

Aerospace navigation systems
Industrial automation and robotics
Autonomous vehicle guidance
Medical equipment stabilization
Precision instrumentation

Technical Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF	≥100000

Customization Options

Our single-axis gyroscope can be customized to meet specific application requirements, featuring:

Advanced angular rate measurement capabilities
Optimized low power consumption design
Robust construction for vibration resistance (6.06g, 20~2000Hz)
Precision manufacturing for consistent quality

Frequently Asked Questions

Q: What is a Fiber Optic Gyro?

A: A Fiber Optic Gyro (FOG) is an inertial sensing device that measures object rotation through light interference in optical fibers, manufactured by AVIC in China.

Q: What are the benefits of using an AVIC Fiber Optic Gyro?

A: Key benefits include high precision (0.02°/hr accuracy), low power consumption, and immunity to external magnetic fields.

Q: What applications are these gyros suitable for?

A: Ideal for navigation systems, robotics, autonomous vehicles, aerospace applications, and industrial automation.

Q: What is the maximum measurement range?

A: Standard range is ±250º/s, with extended options available up to ±1000°/sec.

Q: How accurate are these gyros?

A: Delivers exceptional accuracy of 0.02°/hr (0.00002°/sec) with minimal drift.
