Ürün ayrıntıları

Ev Ürünler

High Performance Fiber Optic Gyroscope with 0.8°/h Bias Stability

Marka Adı:	Firepower
Model Numarası:	MFOG-40
Moq:	1
fiyat:	700$
Ödeme Şartları:	L/C,D/A,D/P,T/T,Western Union
Tedarik Yeteneği:	500/ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Önyargı kararlılığı:

≤0,8°/saat

Maksimum Açısal Hız:

±300°/s

Sıfır önyargı tekrarlanabilirliği:

≤0,8°/saat

Besleme gerilimi:

+5V

Rastgele Yürüyüş Verimliliği:

≤0,03°/√h

Çıkış türü:

Analog

bant genişliği:

>300Hz

Boyut:

40mm × 20mm

Ambalaj bilgileri:

Kutu+Sünger

Yetenek temini:

500/ay

Vurgulamak:

Fiber Optic Gyroscope with 0.8°/h stability

High performance Fiber Optic Gyro

Precision Fiber Optic Gyroscope

Ürün Açıklaması

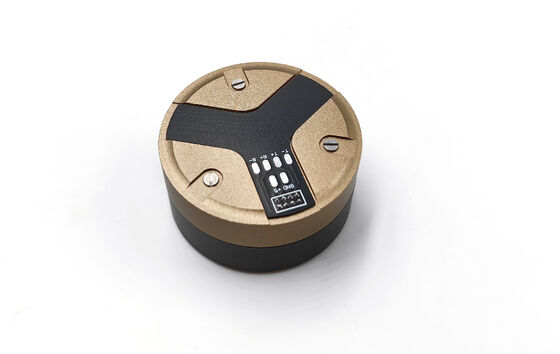

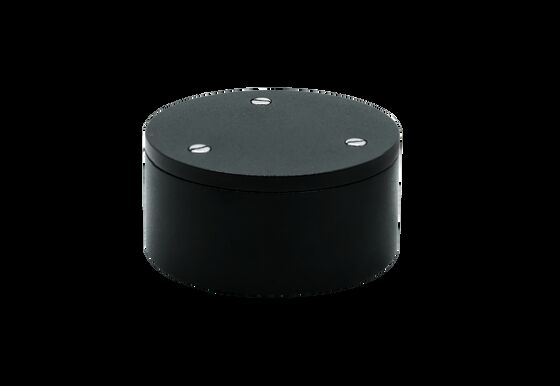

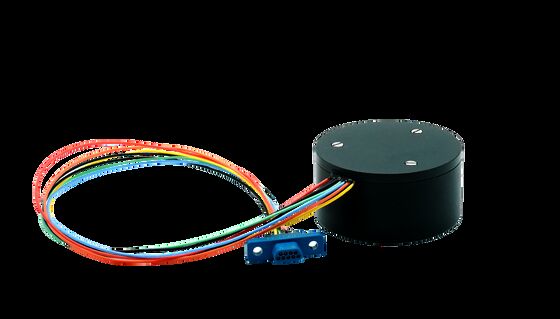

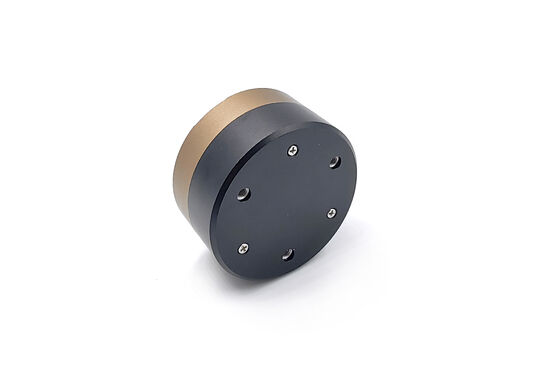

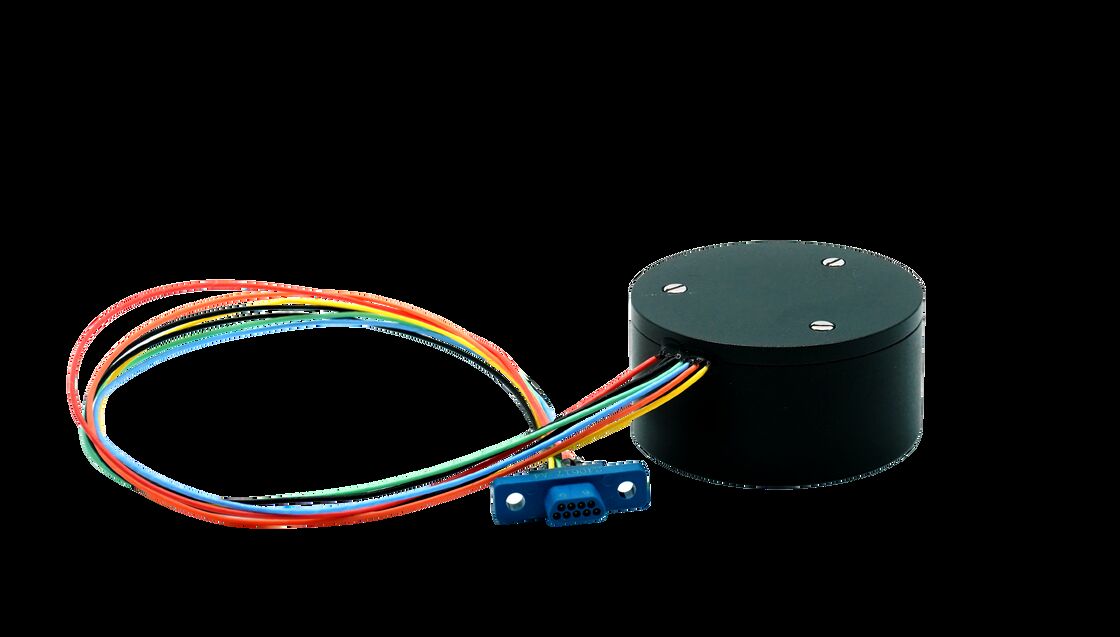

High Performance Fiber Optic Gyroscope with 0.8°/h Bias Stability

This micro-nano fiber optic gyroscope integrates optical path assemblies, signal control circuits, and structural components to deliver exceptional reliability. With ≥300Hz bandwidth and low power consumption (≤1.5W), it is ideal for marine, aerospace, and land-based applications.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Technical Specifications

Parameter	Specification
Range (°/s)	±300
Scale Factor (LSB/°/s)	3600
Scale Factor Nonlinearity (ppm)	≤500
Zero-Bias Stability (10s, 1σ, °/H)	≤0.8
Zero-Bias Repeatability (1σ, °/H)	≤0.8
Angular Random Walk (°/H¹/²)	≤0.02
Zero-Bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power Supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimensions (mm)	φ40*20
