260m Free Standing Fiber Optic Coil Low Shupe Error for FOG System

Marka Adı:	Firepower
Model Numarası:	F50 Bağımsız optik fiber bobin
Moq:	1
fiyat:	700$
Ödeme Şartları:	L/C,D/A,D/P,T/T,Western Union
Tedarik Yeteneği:	500/ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Uzunluk:

260±5 m

Optik fiber:

80/135μm Optik Fiber

Katmanlar:

9-26gsm

karışma:

≤-22dB

Ekleme Kaybı:

≤0,2dB

Sabit Sıcaklık Önyargı Kararlılığı (10s Düzeltme):

≤0,3°/saat

Ambalaj bilgileri:

Kutu+Sünger

Yetenek temini:

500/ay

Vurgulamak:

260m fiber optic coil for FOG

low Shupe error fiber optic gyro

free standing fiber optic coil

Ürün Açıklaması

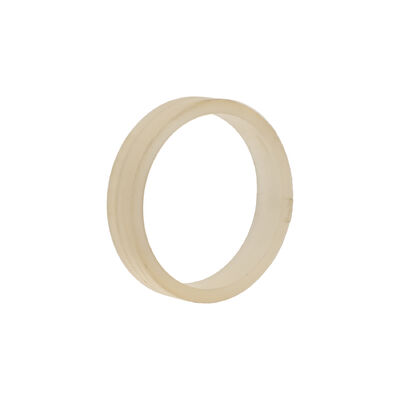

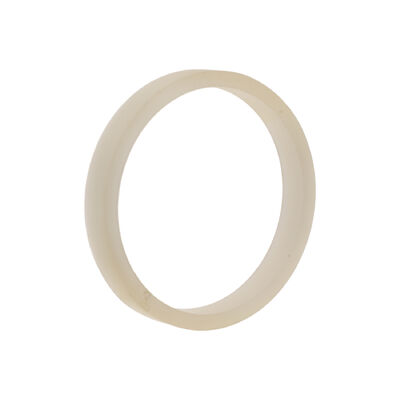

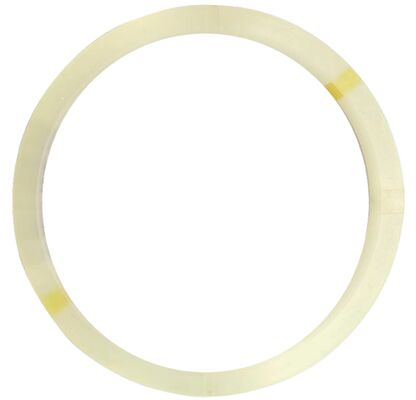

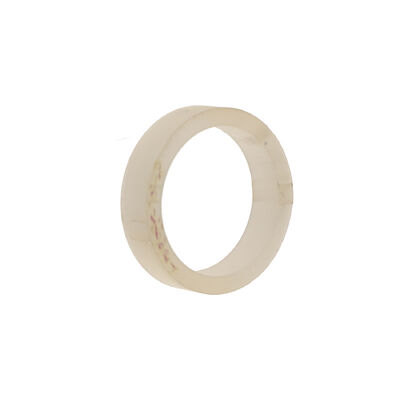

260m Free Standing Fiber Optic Coil Low Shupe Error for FOG System

Product Overview

Our company specializes in professional design and manufacturing of optical fiber coils to meet customer and market application requirements. The φ50 low-precision fiber optic coil is engineered specifically for φ50 fiber optic gyroscopes, ensuring optimal assembly, performance, and reliability across various application environments.

Application Areas

Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter configurations.

Product Features

This optical fiber coil utilizes advanced multi-pole symmetric winding technology with 135μm thin diameter optical fibers and UV-cured adhesive. The design delivers exceptional temperature and vibration performance while enabling mass production with consistent product quality.

Multi-pole symmetric winding method
135μm thin diameter optical fibers
UV-cured adhesive technology
Excellent temperature and vibration performance
Mass production capability with consistent quality

Technical Specifications

Feature	Unit	Index
Length	M	260±5
Optical Fiber	/	80/135μm Optical Fiber
Layers	layer	36
Crosstalk	dB	≤-22
Full Temperature Crosstalk	dB	≤-20
Insertion Loss	dB	≤0.2
Constant Temperature Bias Stability (10s Smoothing)	°/h	≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing)	°/h	≤1.5
Temperature Range	°C	-45-80
Temperature Rate of Change	°C/min	1
Geometric Dimensions	/	29.0mm(ID) * 39.0mm(OD) * 9.2mm(H)

Customization Options

We offer comprehensive customization services for optical fiber coils. Geometric dimensions, length, and performance specifications can be tailored to meet your specific application requirements.
