Single Mode Fiber Optic Coil for Accurate Signal Detection Factory Supply

Single Mode Fiber Optic Coil for Accurate Signal Detection Factory Supply

Marka Adı: Firepower
Model Numarası: F50 Bağımsız optik fiber bobin
Moq: 1
fiyat: 700$
Ödeme Şartları: L/C,D/A,D/P,T/T,Western Union
Tedarik Yeteneği: 500/ay
Ayrıntılı Bilgiler
Menşe yeri:
Çin
Uzunluk:
260±5 m
Optik fiber:
80/135μm Optik Fiber
Katmanlar:
9-26gsm
karışma:
≤-22dB
Ekleme Kaybı:
≤0,2dB
Sabit Sıcaklık Önyargı Kararlılığı (10s Düzeltme):
≤0,3°/saat
Ambalaj bilgileri:
Kutu+Sünger
Yetenek temini:
500/ay
Vurgulamak:

single mode fiber optic coil

,

fiber optic gyro signal detection

,

factory supply fiber optic coil

Ürün Açıklaması

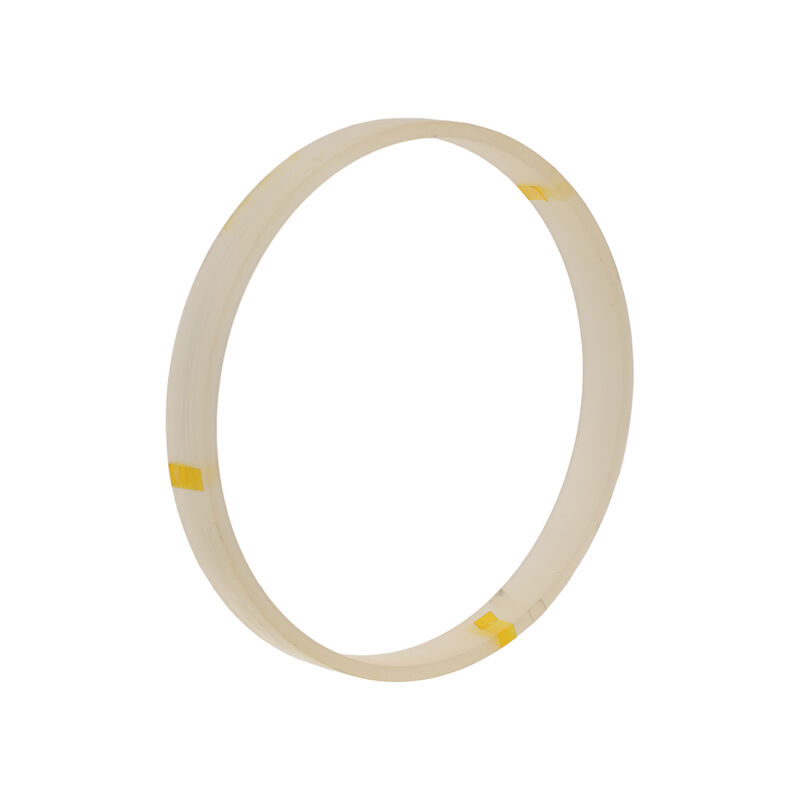

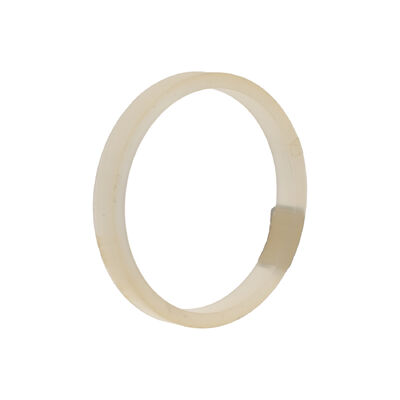

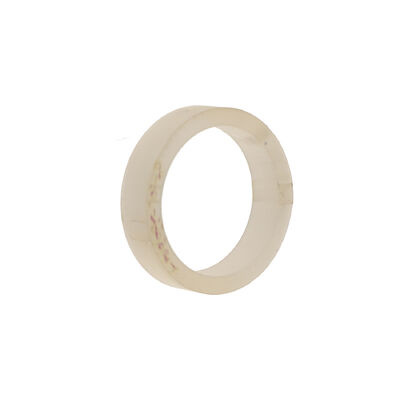

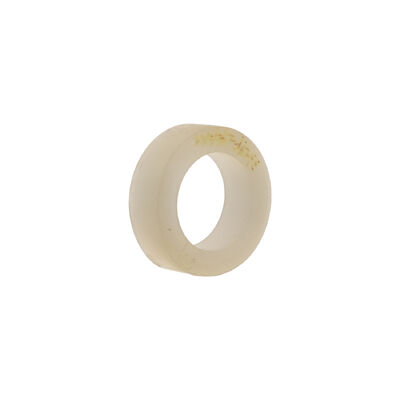

Single Mode Fiber Optic Coil for Accurate Signal Detection
Product Overview
Our company specializes in the professional design and manufacturing of optical fiber coils to meet specific customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to satisfy the assembly, performance, and environmental requirements of φ50 fiber optic gyroscopes.
Application Areas
Primarily used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.
Product Features
This optical fiber coil model utilizes a multi-pole symmetric winding method with 135μm thin diameter optical fibers and UV-cured adhesive. The ring demonstrates exceptional temperature and vibration performance, and supports mass production with excellent product consistency.
Technical Specifications
Feature Unit Index
Length M 260±5
Optical Fiber / 80/135μm Optical Fiber
Layers layer 36
Crosstalk dB ≤-22
Full Temperature Crosstalk dB ≤-20
Insertion Loss dB ≤0.2
Constant Temperature Bias Stability (10s Smoothing) °/h ≤0.3
Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) °/h ≤1.5
Temperature Range °C -45-80
Temperature Rate of Change °C/min 1
Geometric Dimensions / 29.0mm(ID) × 39.0mm(OD) × 9.2mm(H)
Customization Options
The geometric dimensions, length, and performance specifications of the optical fiber coil can be custom-designed according to your specific application requirements.
