Precision Fiber Optic Gyroscope FOG Tactical Grade for Stabilized Platforms

Name: Precision Fiber Optic Gyroscope FOG Tactical Grade for Stabilized Platforms
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Marka Adı:	Firepower
Model Numarası:	MFOG-24
Moq:	1
fiyat:	700$
Ödeme Şartları:	L/C,D/A,D/P,T/T,Western Union
Tedarik Yeteneği:	500/ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Maksimum Açısal Hız:

±500°/s

Önyargı kararlılığı:

≤2 °/s

Rastgele yürüyüş katsayısı:

≤0,04°/√h

Besleme gerilimi:

+5V

bant genişliği:

≥300Hz

Boyut:

φ24x39mm

Ambalaj bilgileri:

Kutu+Sünger

Yetenek temini:

500/ay

Vurgulamak:

tactical grade fiber optic gyroscope

precision FOG for stabilized platforms

fiber optic gyro with warranty

Ürün Açıklaması

Precision Fiber Optic Gyroscope FOG Tactical Grade for Stabilized Platforms

Product Overview

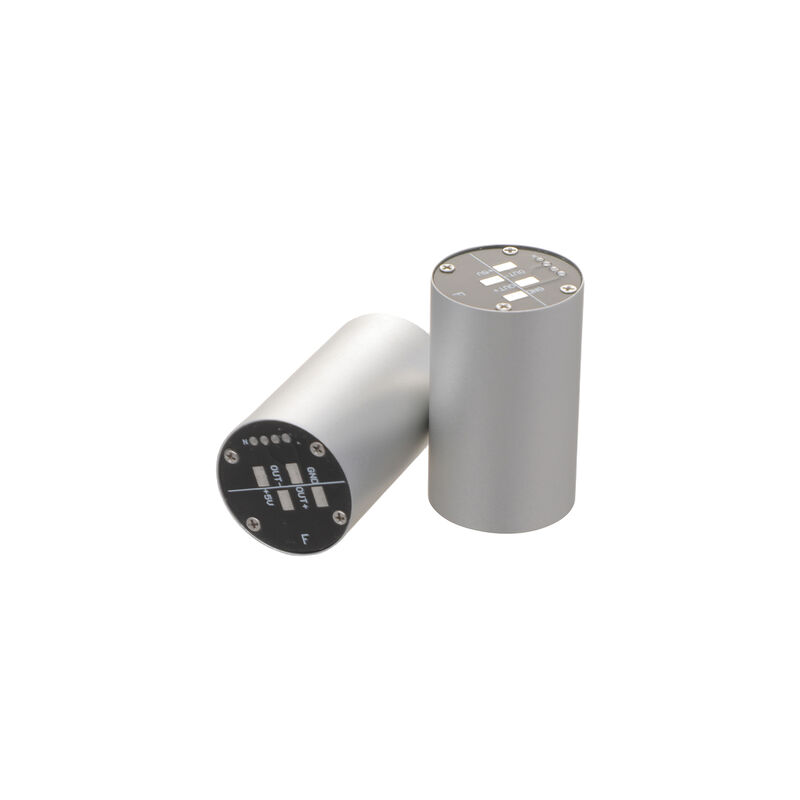

MFOG-24 Fiber Optic Gyroscope - High-Accuracy, Lightweight Navigation Sensor

Compact and lightweight (φ24×39mm, ≤30g), the MFOG-24 delivers high-precision angular rate measurements using the Sagnac effect. Its no moving parts design ensures durability, fast start-up, and minimal maintenance. Low power consumption (≤1.5W) makes it ideal for UAVs, drones, autonomous vehicles, and industrial robotics.

Key Features

Angular rate range: ±500°/s, zero-bias ≤0.02°/s
Scale factor nonlinearity: 300 ppm
Angular random walk: ≤0.03°/h1/2
Operating temperature: -40°C to +65°C, storage: -55°C to +85°C
Vibration resistance: 20g
Replacement for Fizoptika VG191AD

Application Scenarios

UAV & Drone Stabilization
Autonomous Vehicles & Robotics
Industrial Automation
Aerospace & Satellite Navigation

Technical Specifications

MFOG-24 vs MFOG-24-AN vs Fizoptika VG191AD — Complete Parameter Comparison

Parameter	Unit	MFOG-24	MFOG-24-AN	Fizoptika VG191AD
Measurement Range	°/s	±500	±300	300
Scale Factor	LSB/°/s or mV/°/s	3600 LSB/°/s	7 mV/°/s	0.02 % RMS
Scale Factor Nonlinearity	ppm	300	≤1000	N/A
Zero-Bias Stability (10s, 1σ)	°/h	≤1.5	≤2	1 (Allan variance min)
Zero-Bias Repeatability (1σ)	°/h	≤1.5	≤2	N/A
Angular Random Walk (ARW)	°/√h	≤0.03	≤0.04	0.012
Bandwidth (3dB)	Hz / kHz	≥300 Hz	≥450 Hz	0.6 kHz
Magnetic Response	°/h/Gauss	N/A	N/A	3 / 0.05 typical
Initialization	s	Fast	Fast	0.03
Power Supply	V	5 ±0.15	5 ±0.15	+5V
Power Consumption	W	≤1.5	≤0.7	0.5
Data Rate	kHz	N/A	N/A	8 (24-bit)
Baud Rate	kBd	N/A	N/A	921.6, RS422 asynchronous
Operating Temperature	°C	-40~+65	-40~+65	-40…+70
Endurance / Storage Temperature	°C	-55~+85	-55~+85	-55…+85 (>2h, non-operating)
Random Vibration	g	20, 20-2000 Hz	20 g	18 g, 20-2000 Hz RMS
Shocks	g	N/A	N/A	750 g, 1 ms half-sine
Dimensions	mm	φ24 × 39	φ24 × 39	φ24 × 48
Weight	g	≤30	≤30	30 / 45
Housing	--	Structural + Optical + Electronics	Structural + Optical + Electronics	Al alloy / μ-metal, IP67
MTBF / Lifetime	yr	N/A	N/A	15 (humidity conditions applied)
Moving Parts	--	None	None	None
Start-up	--	Fast	Fast	0.03 s
Applications	--	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement
Replacement	--	Fizoptika VG191AD compatible	Fizoptika VG191AD compatible	N/A

Applications

Navigation for drones, autonomous vehicles, robotics, and industrial motion control. Serves as a drop-in replacement for Fizoptika VG191AD.

Electrical Interface

Number	Definition
1	5V
2	Analog output Low
3	Analog Output High
4	GND
