High Bandwidth Fiber Optic Gyroscope with 0.8 deg/h Bias Stability and Compact Design for Precision Motion Measurement

Name: High Bandwidth Fiber Optic Gyroscope with 0.8 deg/h Bias Stability and Compact Design for Precision Motion Measurement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 10000 USD
Availability: InStock

Marka Adı:	FIREPOWER
Model Numarası:	MFOG-910

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

ISO 9001:2015, CE, RoHS

Sıfır önyargı kararlılığı:

0,8 derece/saat

Önyargı Tekrarlanabilirliği:

0,8 derece/saat

Ölçüm Aralığı:

240 derece/sn

Ölçek faktörü doğrusalsızlığı:

<=1000 sayfa/dakika

Boyut:

82 mm x 82 mm x 19,5 mm

hızlanma:

>=70g

Vurgulamak:

high bandwidth fiber optic gyroscope

precision motion measurement FOG sensor

0.8 deg/h MFOG-910 gyroscope

Ürün Açıklaması

High Bandwidth Fiber Optic Gyroscope 0.8 deg/h for Precision Motion Measurement Equipment

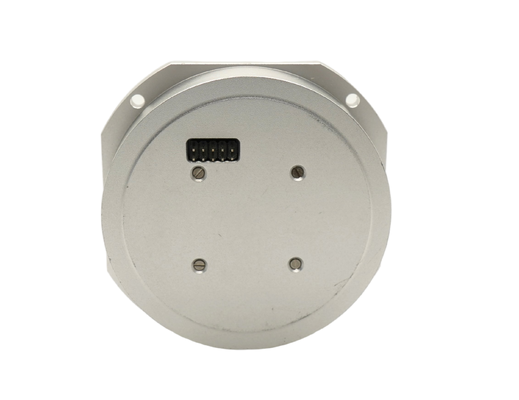

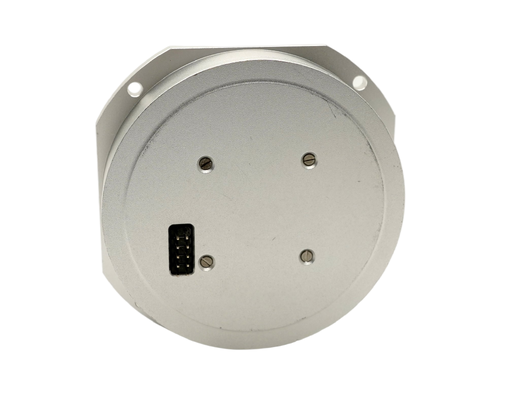

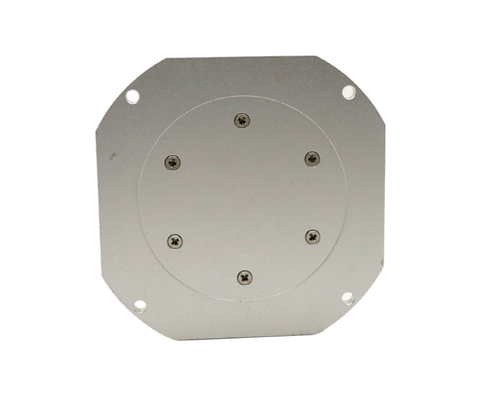

MFOG-910 High Bandwidth Fiber Optic Gyroscope

The MFOG-910 is a high-bandwidth fiber optic gyroscope engineered for precision motion measurement and dynamic testing applications. Its 1000Hz 3dB bandwidth captures rapid angular movements with exceptional fidelity, making it ideal for rate table calibration and motion analysis systems.

Utilizing advanced Sagnac effect technology with micro-nano optical devices, the MFOG-910 achieves 0.8 deg/h bias stability and 0.02 deg/rt-h angular random walk. The solid-state construction ensures repeatable measurements over extended testing campaigns without mechanical degradation.

Technical Specifications

Parameter	Specification
Range (deg/s)	+/-240
Scale Factor (mV/deg/s)	47+/-5
Scale Factor Nonlinearity (ppm)	<=1000
Zero-Bias Stability (10s, 1 sigma, deg/H)	<=0.8
Zero-Bias Repeatability (1 sigma, deg/H)	<=0.8
3dB Bandwidth (Hz)	>=1000
Random Walk (deg/rt-H)	<=0.02
Power Supply (V)	5+/-0.25+12
Power Consumption (W)	<=1.5
Impact Resistance (g)	>=1500
Vibration Resistance (g)	>=70
Service Life (years)	>=15
MTBF (Calculated)	>=100,000 hours

Key Features

1000Hz bandwidth captures high-frequency angular dynamics
0.8 deg/h bias stability for repeatable precision measurements
0.02 deg/rt-h ARW for low-noise motion analysis
Solid-state reliability for continuous test laboratory operation
Compact 82mmx82mmx19.5mm for test fixture integration
1500g impact resistance ensures durability in test environments

Applications

Rate table calibration
Inertial sensor testing
Vibration analysis systems
Dynamic motion measurement
Automotive crash test instrumentation
Industrial robot validation
