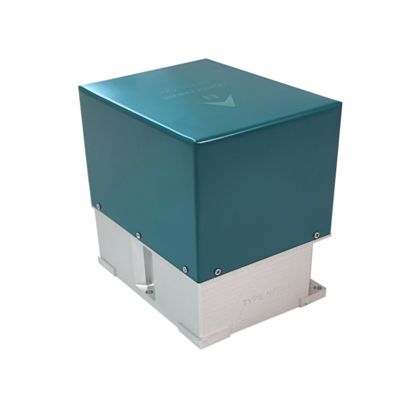

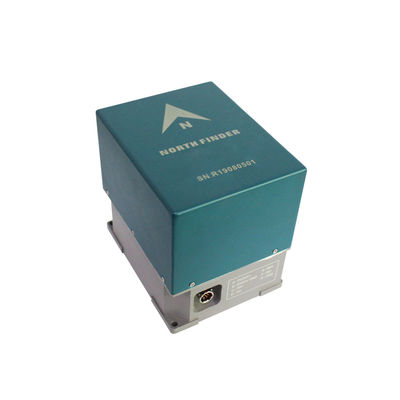

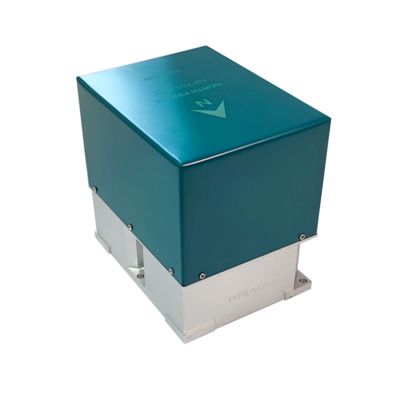

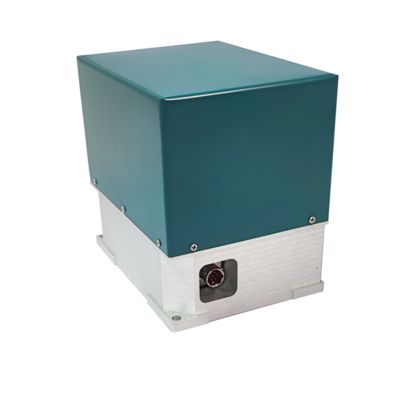

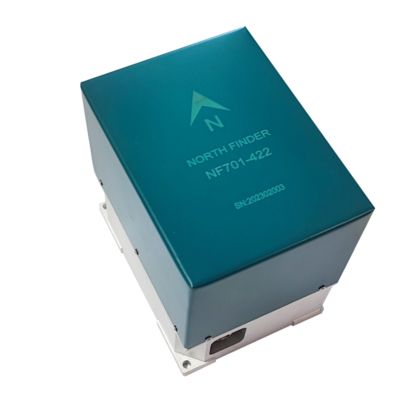

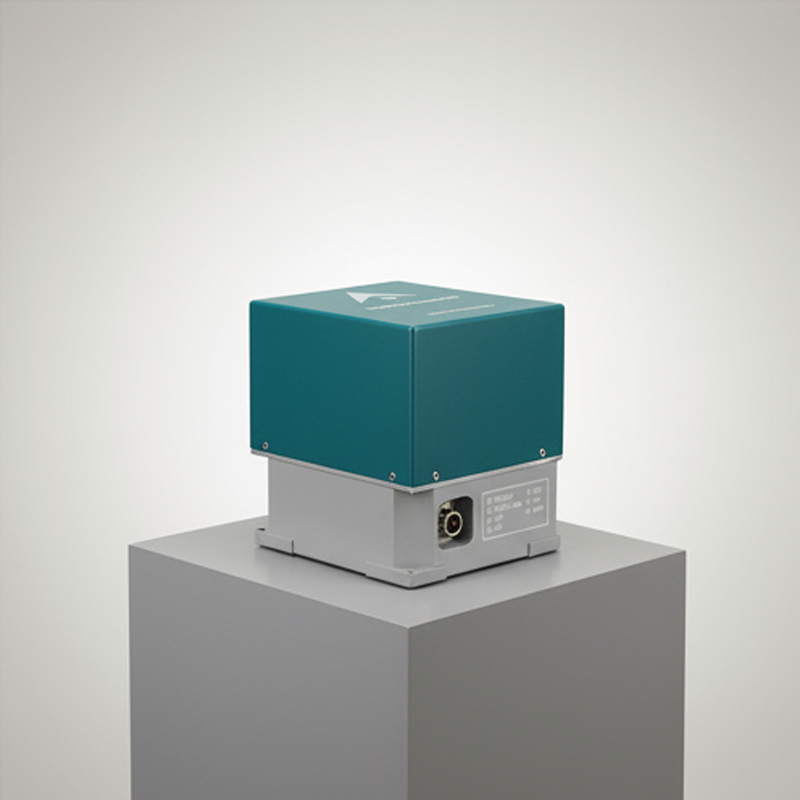

FNF703 North Seeker Fiber Optic Gyro for True North Determination

FNF703 North Seeker Fiber Optic Gyro for True North Determination

Marka Adı:	1
Model Numarası:	NF701
Moq:	1
fiyat:	2000$
Ödeme Şartları:	L/C, D/P, T/T, Western Union
Tedarik Yeteneği:	500/ay

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Ürün adı:

fiber optik jiroskop kuzey bulucu

Kuzey Arama Doğruluğu (1σ):

≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)

yatay doğruluk:

≤ 0,05 °

Çevre:

≤ 0.5 °

Arayüz:

Rs422

Güç Kaynağı:

DC 12V ~ 24V

Ağırlık:

≤ 2 kg

Boyut:

115 × 90 × 110mm

Ambalaj bilgileri:

Sünger + karton

Yetenek temini:

500/ay

Vurgulamak:

FNF703 fiber optic gyro north finder

gyro north finder with true north determination

North Seeker fiber optic gyro

Ürün Açıklaması

FNF703 North Seeker Fiber Optic Gyro for True North Determination

The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.

Featuring an all-solid-state design with no moving parts, it ensures high reliability, long operational life, and low maintenance. Its compact, lightweight, and low-power construction allows seamless integration into dynamic platforms while maintaining fast alignment, stable performance, and robust resistance to harsh environments.

Product Specifications

Attribute	Value
Product Name	fiber optic gyroscope north finder
North seeking accuracy (1σ)	≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)
Horizontal accuracy	≤ 0.05 °
Circumference	≤ 0.5 °
Interface	RS422
Power supply	DC 12V ~ 24V
Weight	≤ 2 kg
Dimension	115 * 90 * 110mm

Technical Features

Fast operation: North seeking time ≤ 3 minutes
High precision: North seeking accuracy ≤ 0.3° (NF701A model)
Stable performance: Horizontal accuracy ≤ 0.05°
Compact design: Weighs ≤ 2 kg with dimensions of 115 * 90 * 110mm
Versatile power: Operates on DC 12V ~ 24V with peak consumption of 15W
Reliable interface: RS422 communication protocol
Automated operation: Self-check upon power-on with upper computer control

Environmental Specifications

Operating temperature: -40℃ to +70℃
Storage temperature: -55℃ to +85℃
Humidity resistance: Operates in relative humidity < 95%
Durable construction: Rust-free metal surfaces with intact coatings

Product Diagram

Fiber optic gyroscope north finder

Technical diagram showing dimensions and components
