RS422 Output North Seeker Fiber Optic Gyroscope Sensor for Tunnel Mining

Name: RS422 Output North Seeker Fiber Optic Gyroscope Sensor for Tunnel Mining
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: NF701A
Price: 5000 USD
Availability: InStock

Marka Adı:	Firepower
Model Numarası:	NF701A
Moq:	1
fiyat:	5000$
Ödeme Şartları:	L/C,T/T
Tedarik Yeteneği:	500/adet

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Çıkış Türü:

Rs422

Ağırlık:

2kg

Boyut:

115 × 90 × 110 mm

Güç Kaynağı:

DC 12–24V

Doğruluk (1σ):

≤ 0,3° (NF701A), ≤ 0,5° (NF701B)

Yanıt Süresi:

≤ 3 dakika

Ambalaj bilgileri:

Sünger + Karton

Yetenek temini:

500/adet

Vurgulamak:

RS422 output fiber optic gyroscope

tunnel mining north seeker sensor

fiber optic gyroscope with RS422

Ürün Açıklaması

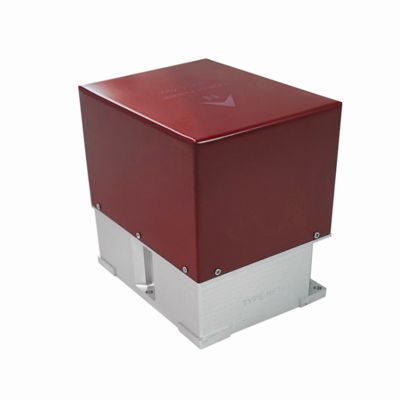

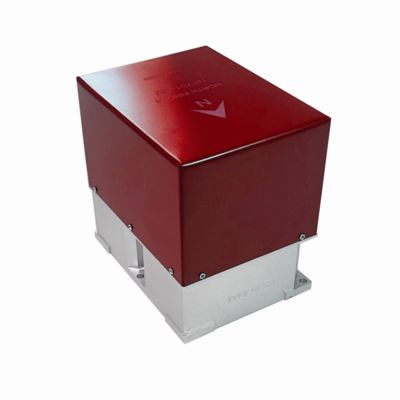

RS422 Output North Seeker Fiber Optic Gyroscope Sensor for Tunnel Mining

The NF701 Fiber Optic North Finder delivers fast, accurate true-north orientation for navigation and targeting systems. Using a high-performance fiber optic gyroscope to detect the Earth's rotation, it computes azimuth and attitude angles automatically within 3 minutes.

Compact (115 * 90 * 110 mm) and lightweight (≤2 kg), the system integrates a FOG, accelerometer, rotation control device, and embedded computing unit. With north-seeking accuracy up to 0.3° (1σ) and power consumption of only 15 W, it's ideal for UAVs, land vehicles, and shipborne systems requiring magnetic-free north finding.

Overall Dimensions

Dimension (mm): 115 * 90 * 110

Main Technical Indicators

North seeking time: ≤ 3 min
North seeking accuracy (1σ): ≤ 0.3° (NF701A); ≤ 0.5° (NF701B)
Horizontal accuracy: ≤ 0.05° (1σ)
Circumference: ≤ 0.5° (1σ)
Weight: ≤ 2 kg
Power supply: DC 12V ~ 24V
Power consumption: 15 W (peak)
Interface: RS422
Working mode: Automatic self-check after power on, controlled north seeking by upper computer, with results sent to upper computer upon completion

Environmental Requirements

Working temperature: -40℃ ~ +70℃
Storage temperature: -55℃ ~ +85℃
Humidity: Relative humidity less than 95%
Appearance: Metal surface free of rust, coating free of blistering or peeling

Electrical Performance

Insulation resistance: The insulation resistance between independent circuits and between circuits and shell shall not be less than 10 MΩ under standard atmospheric conditions.

Reliability and Maintainability

MTBF: ≥ 1000 hours
MTTR: ≤30min

External Interface

DC12V ~ 24V power input
Serial port output function

External Plug Interface Y50EX-0607TX2

Plug Pin Number	Functional Definition
a	DC12V ~24V
b	DC12V ~24V GND
c	TD+
d	TD-
e	RD+
f	RD-
g	GND
